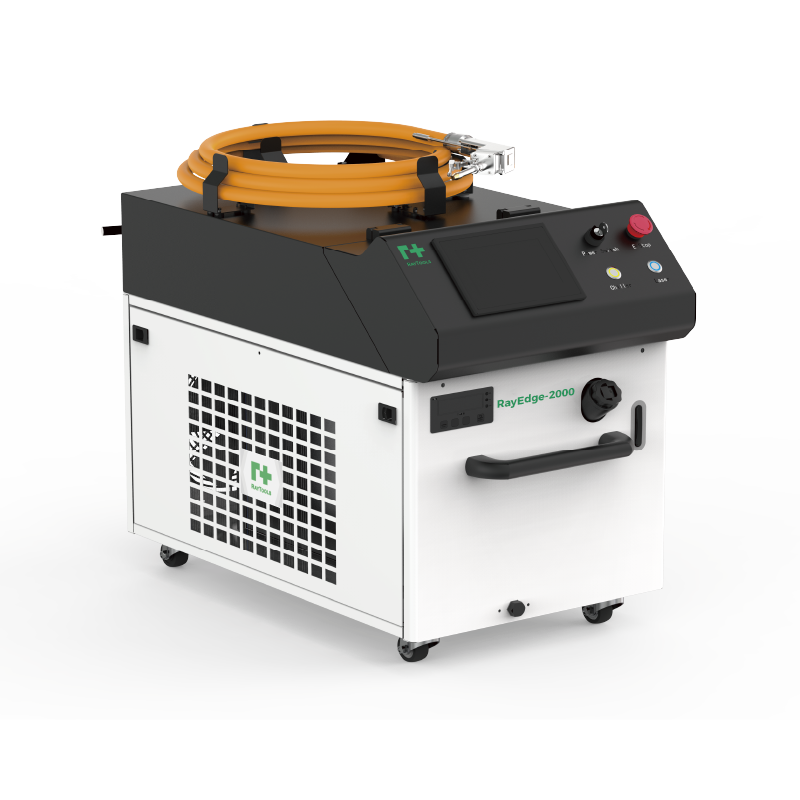

RayEdge-2000

4-in-1 handheld laser application (welding/cutting/weld seam cleaning/remote cleaning)
Manufacturer: RayTools
Weight: 170 Kg

Features

  • "4-in-1" function" (Weld/Cut/WeldSeam Clean/Remote Clean). Quick-change structure of tip assembly from laser processing head.
  • Compact integrated design with easy operation.
  • Wooble welding to improve welding capacity to seam.
  • Wire feeder included to expand application range.
  • Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.





Technical Data

Laser Maxphotonics/Raycus
Laser Power 2000W
Laser Wavelength 1080nm
Fiber Length 10m
Fiber Core 50um
Welding Speed 0-20mm/s
Welding Style Wobble (single axis)
Wobbling Range 0-5mm (Weld)/0-1 0mm (WeldSeam Clean)/0-80mm (Remote Clean)
Welding Seam Width 5mm
Welding Thickness Max. 5mm (SS, MS and 5 series AL) based on 2000W laser
Cooling Water Cooling
Cover Glass Φ20mm*3mm
Collimation Length 60mm
Focus Length 150mm
Power Supply 220V/Single Phase/50 or 60Hz
Overall Dimension 1105x490x823mm (LxWxH)
Transportation Dimension 1240x640x1040mm
Wire Feeder Included
Wire Diameter 0.8/1.0/1.2/1,6mm
Feeding Speed 0.1-1 8m/min
Wire Material SS/AL Magnesium/Copper
Overall Dimension 440x250x580mm
Transportation Dimension 470x310x620mm
