The Robot Welding Subsystem with Integrated Push-Pull Wire Feeding is a comprehensive, production-ready industrial automation solution engineered explicitly for advanced multi-axis robotic fiber laser joint processing. Designed to eliminate compatibility barriers for system integrators and automotive cells, this master-level subsystem integrates a high-response push-pull wire delivery mechanism directly with robotic laser welding heads. By ensuring a perfectly continuous material feed without kinking or slipping, this turnkey package maintains the absolute structural integrity of complex seams, delivering exceptional gap-bridging capabilities and flawless path-tracking fidelity next to multi-axis industrial robotic arms.
Key Specifications:
| Product | Integrated Push-Pull Robotic Laser Welding Subsystem |
| System Composition | High-Power Laser Welding Head (e.g., BW/BF series) paired with synchronized Push-Pull drive motors and specialized software controls |
| Wire Feed Technology | Dual-motor synchronized Push-Pull mechanism |
| Wire Diameter Compatibility | 0.8 mm to 1.6 mm (aluminum, stainless steel, and carbon steel wires) |
| Feeding Response / Precision | Real-time closed-loop speed regulation matching robotic velocity drops |

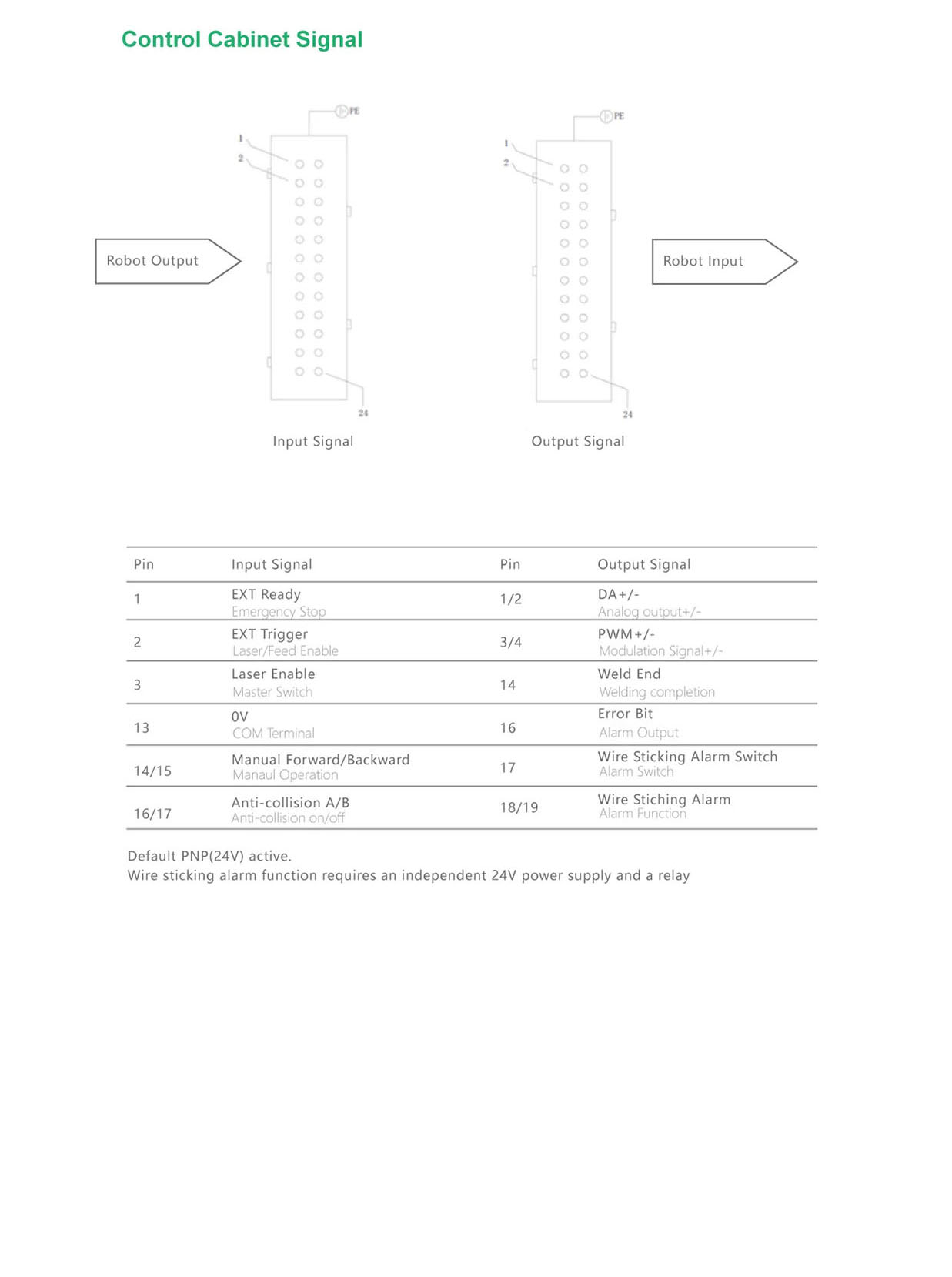

| Control Interface | Multi-axis robotic industrial protocol matching leading robot brands (Fanuc, KUKA, Yaskawa) |
| Application | High-productivity automotive body welding, aluminum structure fabrication, automated heavy machinery lines, and multi-axis robotic welding cells |
Key Features & Industrial Benefits:

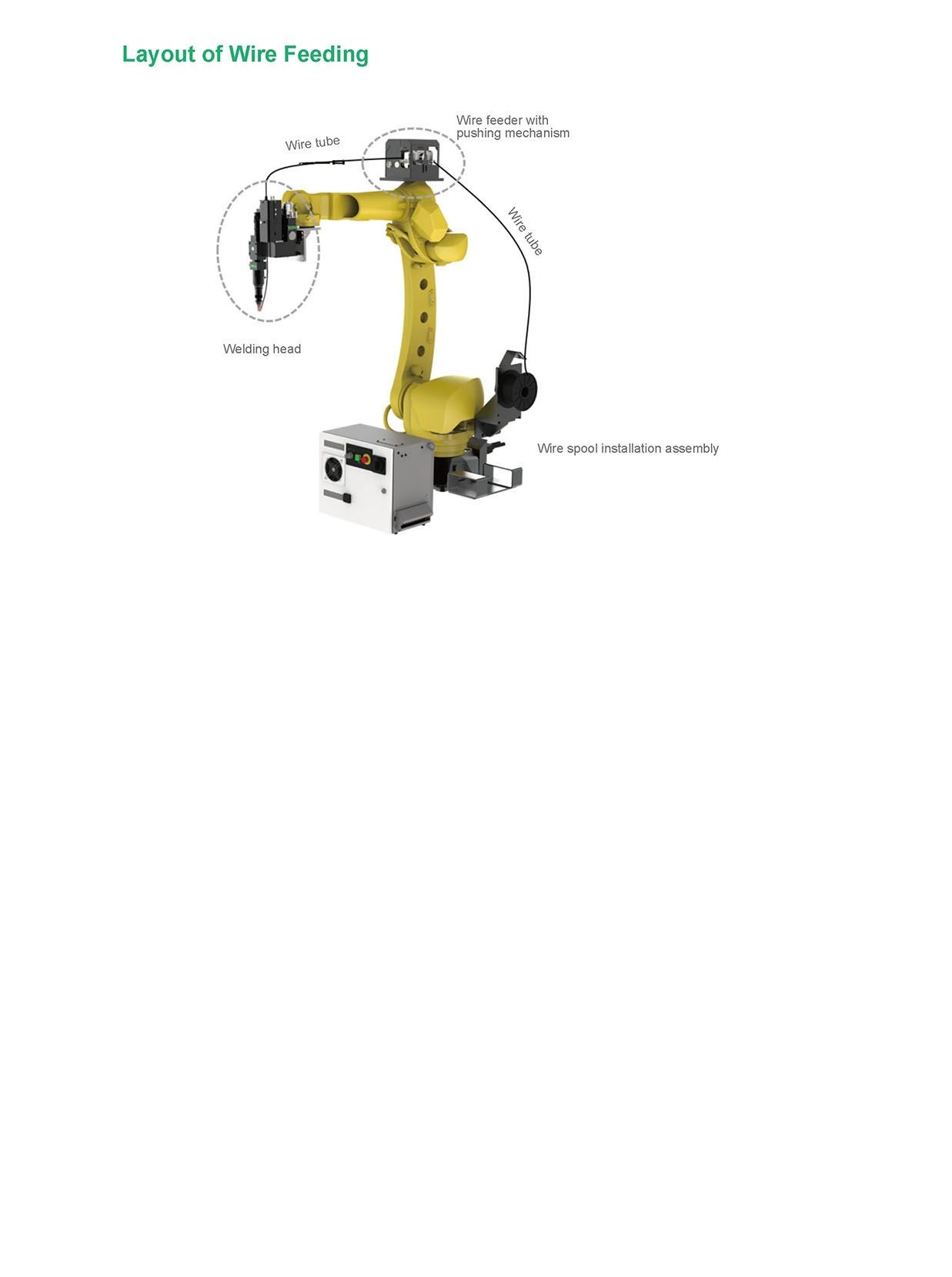

- Synchronized Push-Pull Drive Precision: Employs an advanced dual-motor system where the primary cabinet motor pushes the wire while the torch-integrated slave motor pulls it. This arrangement eliminates wire feeding pulsations, slippage, and bird-nesting over long robotic conduits.
- Flawless Aluminum Welding Performance: Specifically optimized for soft aluminum and specialized alloy wires, providing consistent, friction-free delivery through complex, multi-angle robotic bending paths without scratching the material.

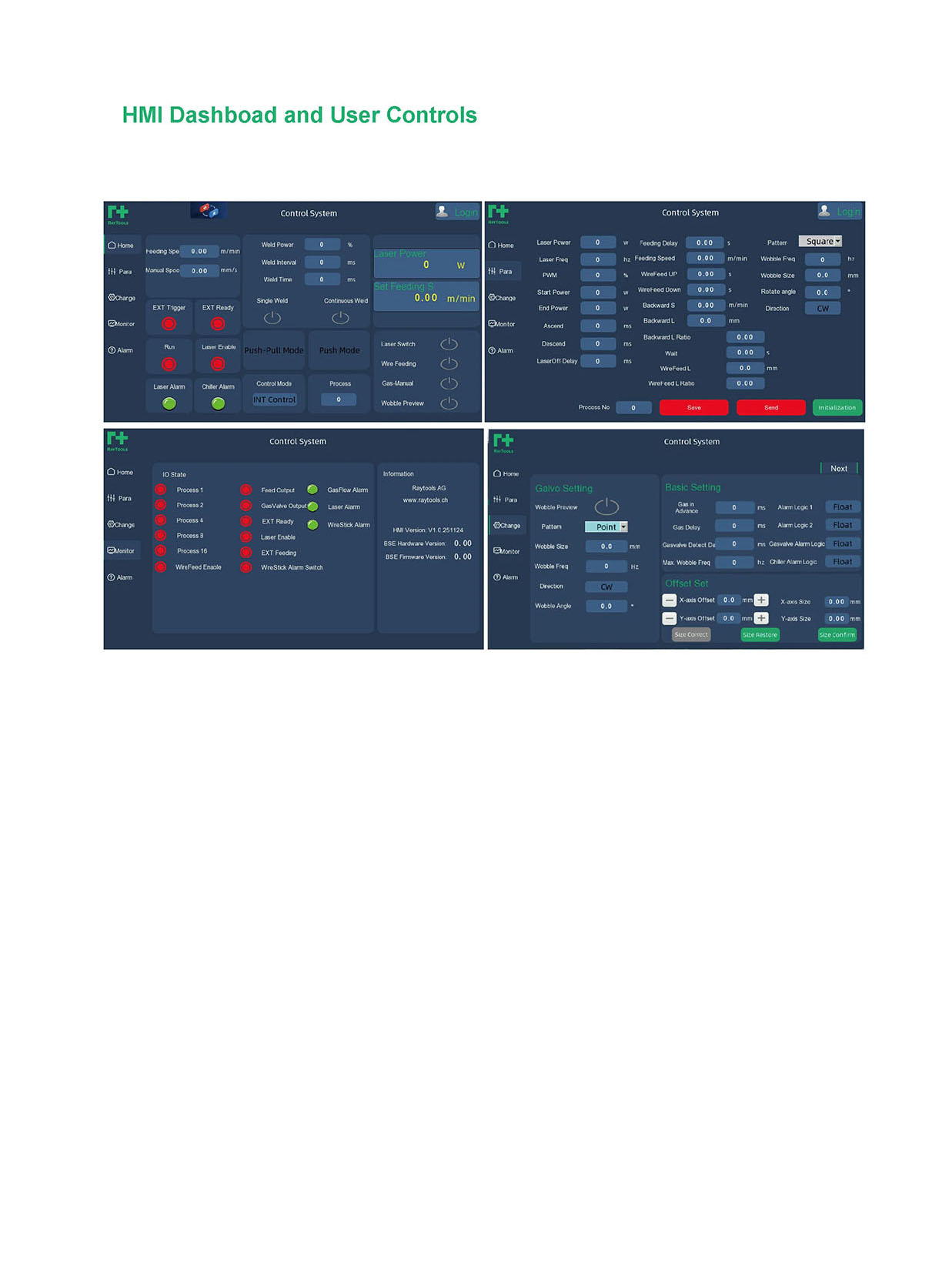

- Velocity-Matched Material Melting: Feature-rich software control loops automatically scale the push-pull wire feed rate relative to the robot's real-time velocity changes at sharp contours, preventing material under-fill or weld-bead piling.
- Airtight Joint Gap Bridging: Works seamlessly with RayTools wobble and programmable wobble welding heads, perfectly coordinating high-frequency beam oscillation with continuous wire feeding to bridge imperfect or uneven part gaps.
- Robust Hardware & Thermal Protection: Configured with a highly robust dustproof internal sealing layout with multiple drawer-type protective windows, isolating the core focusing optics from wire coatings debris and aggressive hybrid welding smoke.
