The KW100 Laser Welding subsystem is a comprehensive, production-ready industrial automation solution engineered explicitly for advanced fiber laser joint processing. Designed to eliminate compatibility barriers for equipment builders, this master-level subsystem integrates high-performance hardware and software into a unified network, ensuring the absolute structural integrity of real-time machine movements and laser power modulation. By pairing the advanced RayTools KW100 process motion controller with specialized automated welding heads and complete I/O electrical cabinetry interface logic, this turnkey kit delivers flawless closed-loop accuracy, consistent pulse frequency regulation, and stable power scaling across high-productivity manufacturing lines.
Key Specifications:
| Product | Integrated Automated Fiber Laser Welding Subsystem |
| Model Configuration | RayTools KW100 Integrated Processing System Series |

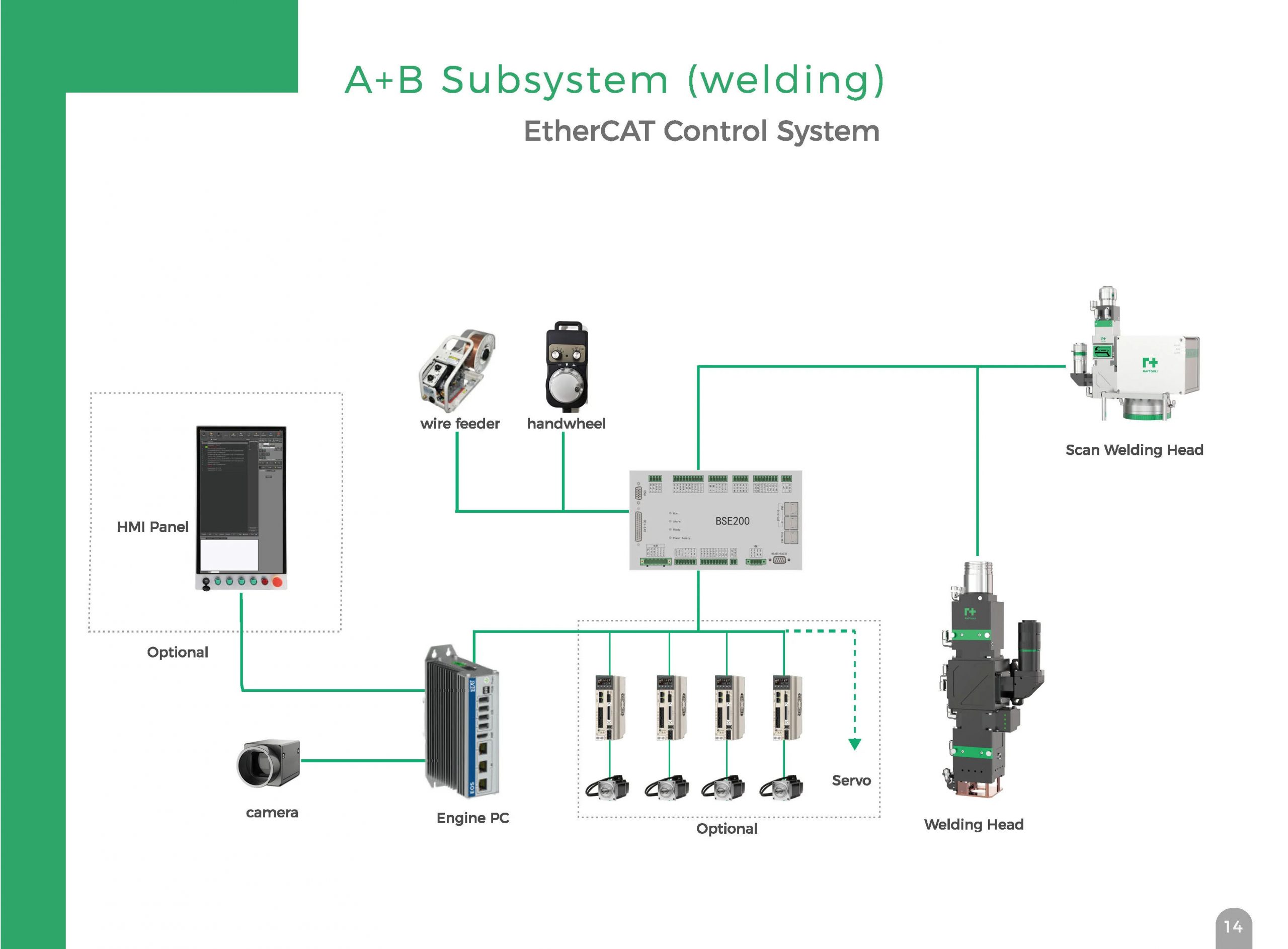

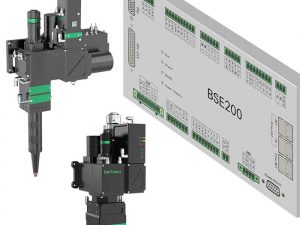

| Core Components Included | KW100 Master Process CNC Controller, Dedicated Laser Welding Software, Industrial I/O Hardware Interface Module, and Automated Focus Laser Welding Head (e.g., BW or BF series) |
| Bus Technology | High-speed real-time industrial communication bus protocol |
| Peripheral Tracking Interfaces | Fully integrated control pathways for wire feeders, shielding gas valves, and safety sensors |
| Application | Automated linear seam welding, stationary continuous joint processing, custom automated welding bench building, and equipment retrofitting |
Key Features & Industrial Benefits:
- All-in-One Turnkey Integration: Combines core motion hardware, specialized welding process logic, pre-configured wiring layouts, and the optical welding torch assembly into a single production-ready package, dramatically shortening deployment cycles for machine builders.
- Velocity-Matched Energy Modulation: Feature-rich control software automatically synchronizes real-time path velocity with the laser source to deliver uniform energy density, preventing burn-through at corners and ensuring consistent, structural joint penetration.
- Dynamic Wobble Control Synchronization: Works seamlessly with RayTools wobble and programmable wobble welding heads to perfectly coordinate high-frequency beam oscillation patterns with structural gantry motion, enabling excellent gap-bridging capabilities.
- Comprehensive Real-Time System Monitoring: Equipped with advanced input/output logic to monitor shielding gas pressure, laser source temperature alerts, and water chiller status in real-time, executing emergency stop protocols if faults occur.
- Robust Factory Protection & Shielding: Engineered with high industrial-grade noise immunity and isolated circuitry to maintain flawless signal integrity and protect vital sensor paths next to high-power fiber laser installations.
