The BW03K laser welding head (formerly referenced as BW210) is a highly efficient, high-performance industrial optical system engineered explicitly for automated and robotic fiber laser joint processing applications. Designed to handle standard industrial thermal loads, this versatile head accommodates fiber laser sources up to 3 kW, ensuring the absolute structural integrity of the beam profile during continuous fabrication cycles. Featuring an All-In-One robust architecture and optimized internal optical paths, the BW06K delivers consistent, deep weld penetration and flawless closed-loop accuracy across modern sheet metal, kitchenware, and hardware manufacturing lines.

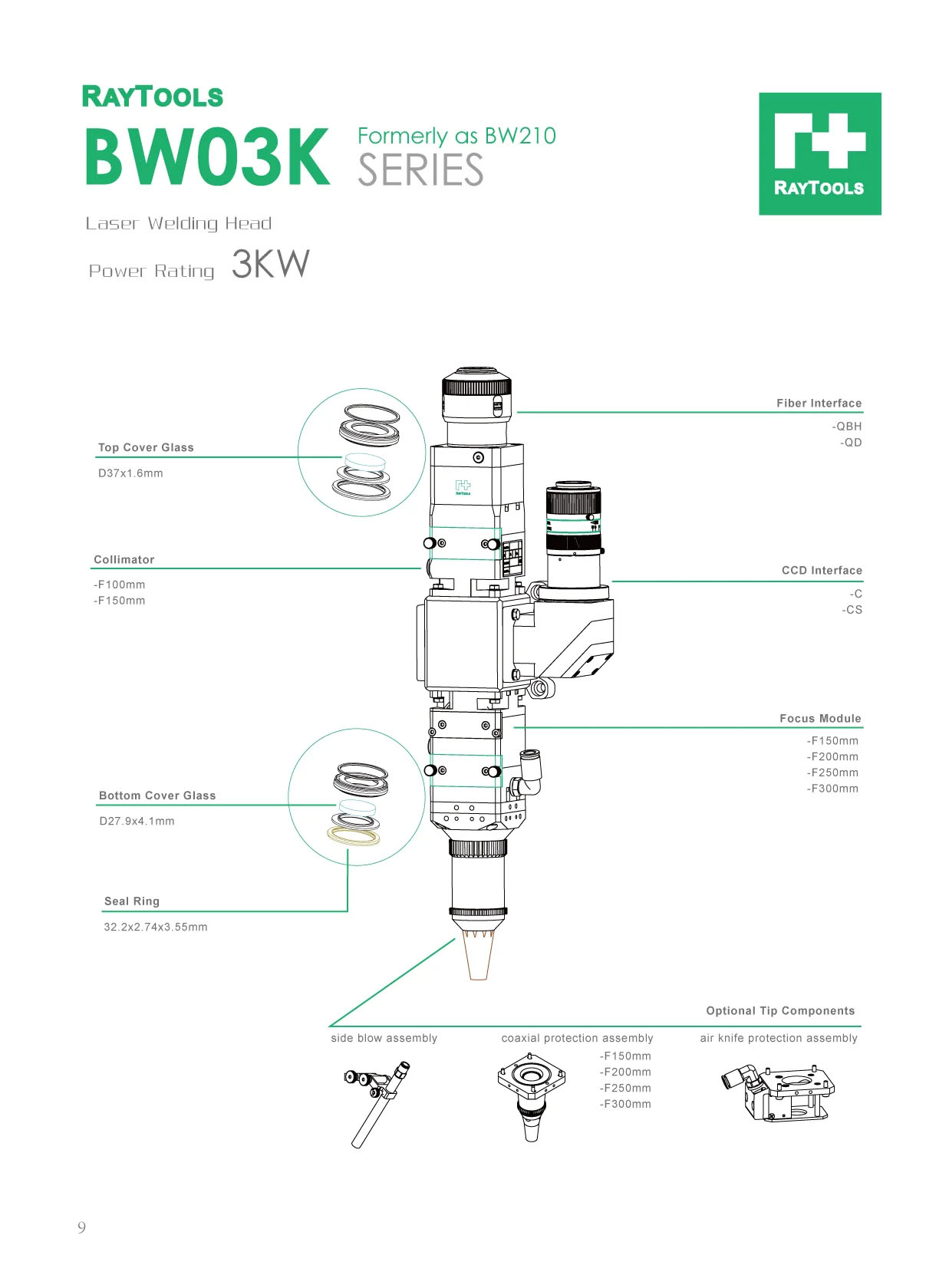

Key Specifications:
| Product | Industrial Automated Fiber Laser Welding Head |
| Model / Series | BW03K Series (Formerly BW210) |
| Power Rating | ≤ 3 kW |
| Fiber Interface Compatibility | QBH, QD, and other standard interfaces |
| Clear Aperture | 28 mm |
| Optical Configuration | High-purity fused silica collimating and focusing lens assemblies |
| Cooling Method | Advanced multi-channel dual-circuit water cooling (For optics and head body) |
| Focusing Technology | Precise manual focus mechanism with optional motorized integration variations |
| Application | Automated stationary seam welding, linear automated lines, and multi-axis robotic joint processing cells |
Key Features & Industrial Benefits:
- Optimized Thermal Management: Engineered with a high-efficiency internal water-cooling circuit surrounding critical optical zones, completely eliminating thermal focus drift and extending component service life under continuous 3kW loads.
- Intelligent Sensor Telemetry Integration: Features advanced interfaces for real-time monitoring of internal cavity status, shield gas pressure, and operational readiness to ensure maximum consistency across production batches.
- Hermetically Sealed Optical Chamber: Implements a highly robust dustproof internal sealing layout with multiple drawer-type protective cover windows, ensuring maximum cavity protection against welding smoke, metal vapor, and workplace contamination.
- Dynamic Gas Circuit Dynamics: Provided with an optimized auxiliary gas distribution module designed to deliver smooth, uniform shielding coverage over the welding pool, actively preventing seam oxidation and reducing spatter adherence.
- Agile Robotic Integration: Features a compact, lightweight yet exceptionally rigid outer body layout, minimizing tool mass to maximize the path-tracking acceleration and orientation agility of multi-axis industrial robotic arms.
