The BSE200 Robot Laser Welding Subsystem is an advanced, production-ready industrial automation package engineered explicitly for continuous multi-axis robotic fiber laser joint processing. Designed to serve as a high-performance "A+B" turnkey module, this subsystem bridges the gap between complex laser hardware and robotic arms, eliminating integration barriers for system integrators and high-tier automotive lines. By combining the highly stable BSE200 centralized controller with RayTools specialized industrial welding heads, the system delivers real-time command over the entire welding process, ensuring ultimate path-tracking fidelity and flawless metallurgical integrity on complex 3D profiles.
Key Specifications:
| Product | BSE200 Intelligent Robot Laser Welding Subsystem |
| Core Subsystem Architecture | High-power intelligent laser welding head (BW/BF Series) deeply pre-integrated with the BSE200 open bus control cabinet |
| Laser Power Compatibility | Supports continuous and pulsed laser outputs from 1 kW up to 6 kW |
| Supported Welding Modes | Fixed beam (BW Series), high-frequency Wobble beam (BF Series), and heat conduction / keyhole welding |
| Fieldbus & Protocol Support | Native hardware-level support for industrial Modbus and EtherCAT protocols |
| Hardware Interface Layout | Dedicated ports for EtherNET (Host PC), RS232 (HMI units), and RS485 communication lines |
| Visual System Diagnostics | Multi-point onboard LED indicators for real-time monitoring of Power Supply, System Alarm, and Run statuses |

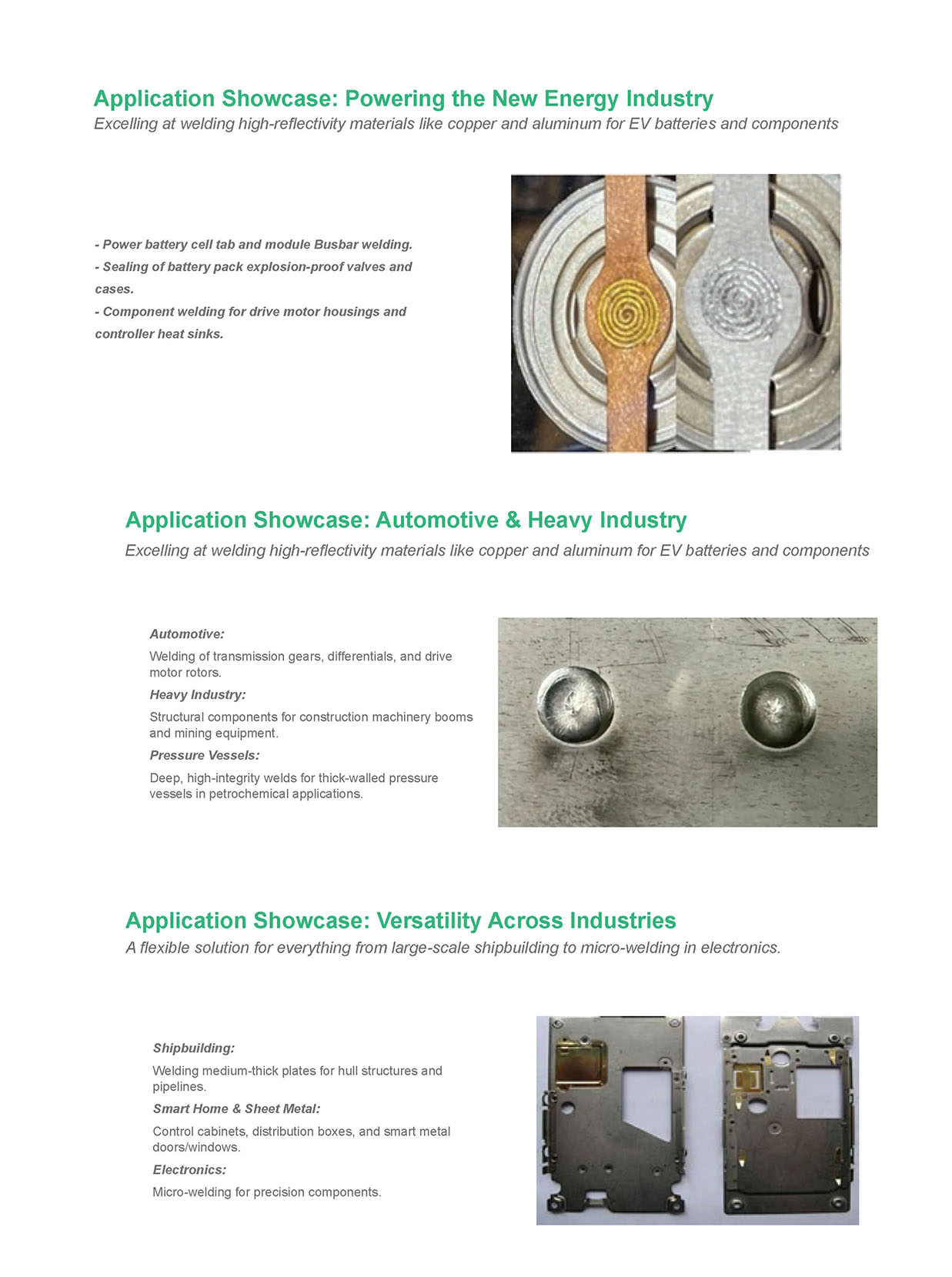

| Application | High-volume automotive body-in-white panels, precision aerospace sheet metal, battery pack enclosures, and heavy machinery multi-axis robotic welding cells |
Key Features & Industrial Benefits:

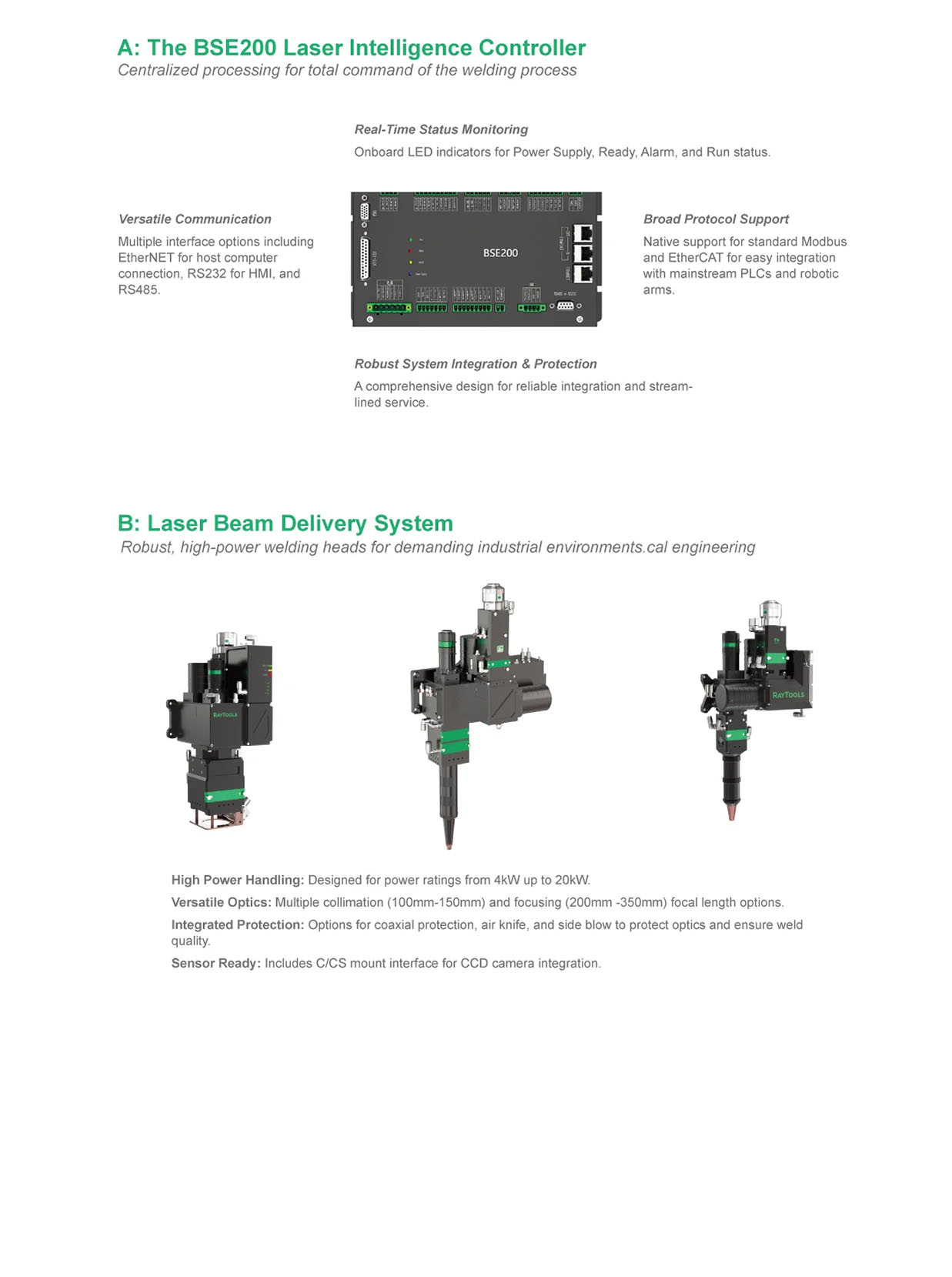

- Centralized Master Control Command: The BSE200 acts as the intelligent core of the entire laser processing cell. It processes real-time signals with zero-latency synchronization, ensuring that laser firing commands, gas delivery, and beam dynamics change instantly in step with the robot’s path movements.
- Broad Native Protocol Integration: Equipped with native Modbus and EtherCAT protocol stacks, the subsystem connects directly into mainstream industrial PLCs and robotic arm controllers (including Fanuc, KUKA, and Yaskawa) without requiring expensive, third-party signal converters or fieldbus bridges.

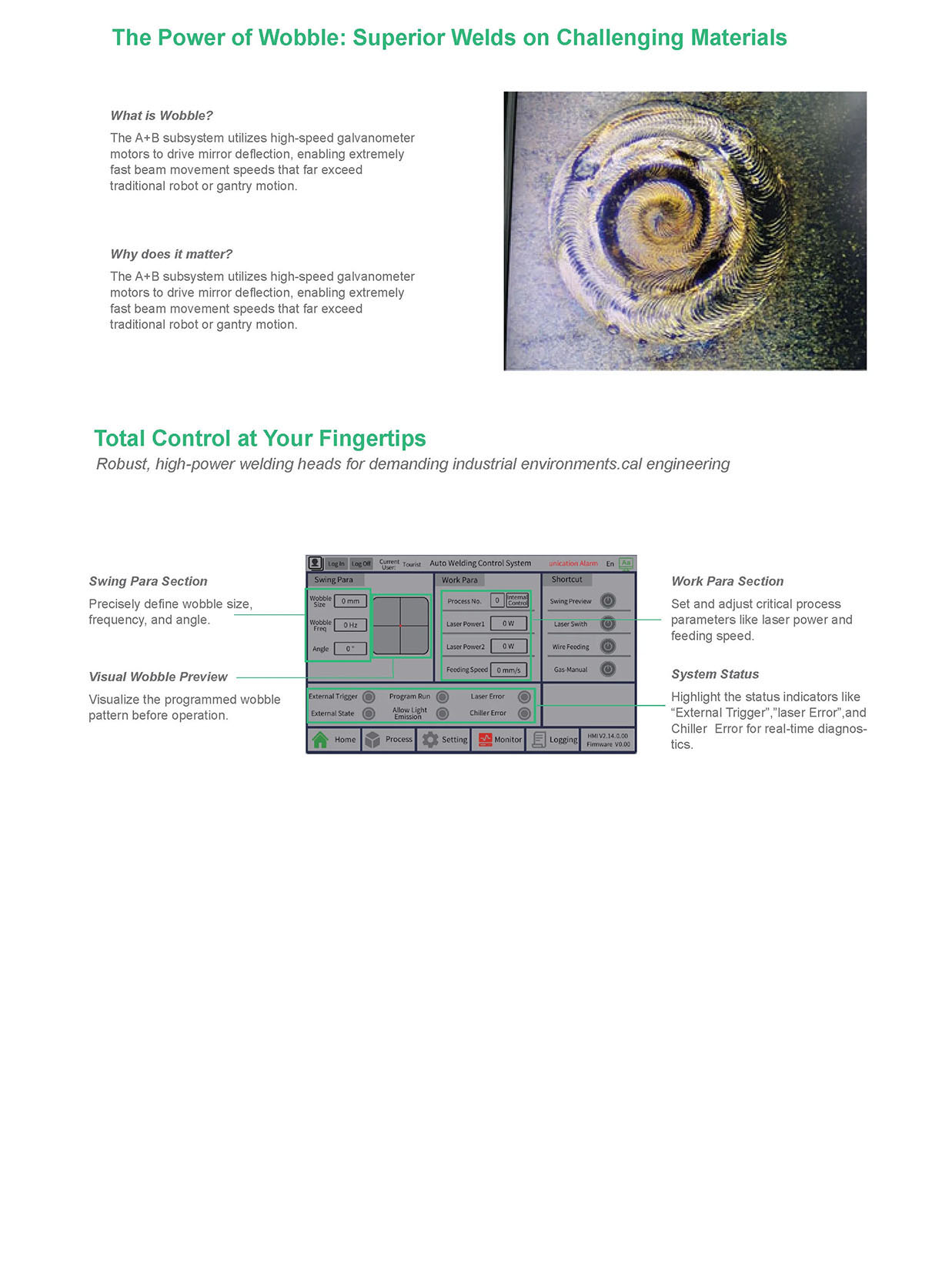

- Flexible Fixed and Wobble Processing: Works seamlessly with the RayTools BW (Fixed Beam) series for high-speed deep penetration keyhole welding, as well as the BF (Wobble Beam) series. Programmable beam oscillation allows operators to easily bridge wide or uneven joint gaps while retaining perfect structural strength.
- Turnkey "A+B" Factory Calibration: Because the smart optics and the BSE200 bus control system are paired and calibrated before delivery, deployment cycles are cut by up to 50%. Integrators can skip complex multi-vendor signal debugging and focus entirely on process optimization.
- Multi-Interface Diagnostics & Protection: Features a robust industrial layout featuring isolated communication ports and quick-read LED indicators. Maintenance crews can quickly diagnose system statuses directly on the factory floor, minimizing unexpected downtime in active production environments.
