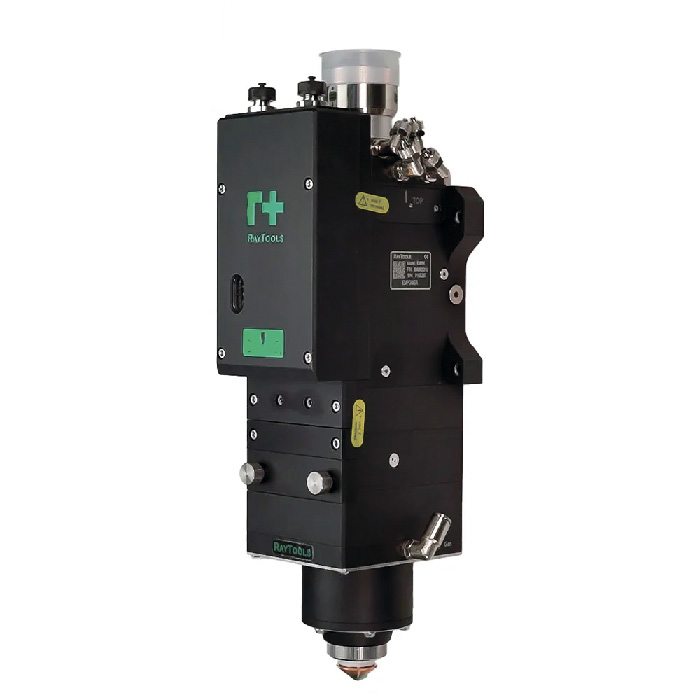

RayTools BM06K is a 6 kW auto-focus fiber laser cutting head for flat sheet metal cutting applications. It is designed for fiber laser machines that require automatic focus adjustment, stable beam delivery and reliable assist gas flow during industrial cutting operations.
The BM06K series supports QBH/G5 fiber interfaces and uses a 100 mm collimation length with 150 mm or 200 mm focusing length configurations. According to the BM06K 2D Series manual, the auto-focus range is -17 to +17 mm with F150 configuration and -32 to +32 mm with F200 configuration.
Main Features
Product type: Auto-focus fiber laser cutting head
Model: RayTools BM06K
Application: Flat sheet fiber laser cutting
Power rating: 6 kW
Fiber interface: QBH / G5
Wavelength: 1080 nm
NA max: 0.14
Collimation length: 100 mm
Focusing length: 150 / 200 mm
Auto focus range: -17 to +17 mm for F150; -32 to +32 mm for F200
Beam alignment range: -1.5 mm to +1.5 mm
Cutting gas connection: Ø10, max. 25 bar
Nozzle cooling gas: Ø8, max. 5 bar
Water cooling: Ø6, max. 5 bar, min. 1.5 L/min
Operating voltage: 24 V ±10%, max. 4 A
Operating temperature: 5°C to 55°C
Humidity: 30% to 95%, without condensing
Weight: 6.5–7.0 kg
Application
The BM06K cutting head is used for flat sheet fiber laser cutting systems where automatic focus control is required. It is suitable for machines operating in medium-power cutting applications up to 6 kW.
The head supports focus adjustment for different cutting conditions and material thicknesses. Correct configuration depends on the machine, laser source, CNC system, height control system, assist gas supply and selected optical setup.
Protection and Monitoring
The BM06K 2D Series manual specifies temperature monitoring for the bottom cover glass and dual cover glass protection for the collimation lens. These functions help monitor the condition of key optical protection components during operation.
The manual also indicates smart monitoring compatibility with Android, which may be used depending on the machine configuration and control setup.
Service and Consumables
The BM06K cutting head uses replaceable optical and mechanical consumables, including nozzles, ceramic bodies, cover glasses, lenses, seals, cables and related service components.
When ordering consumables or spare parts for BM06K, it is important to check the exact head model, optical configuration, fiber interface, nozzle type, protective window size and machine compatibility. Similar-looking parts may have different dimensions, installation geometry or technical specifications.
