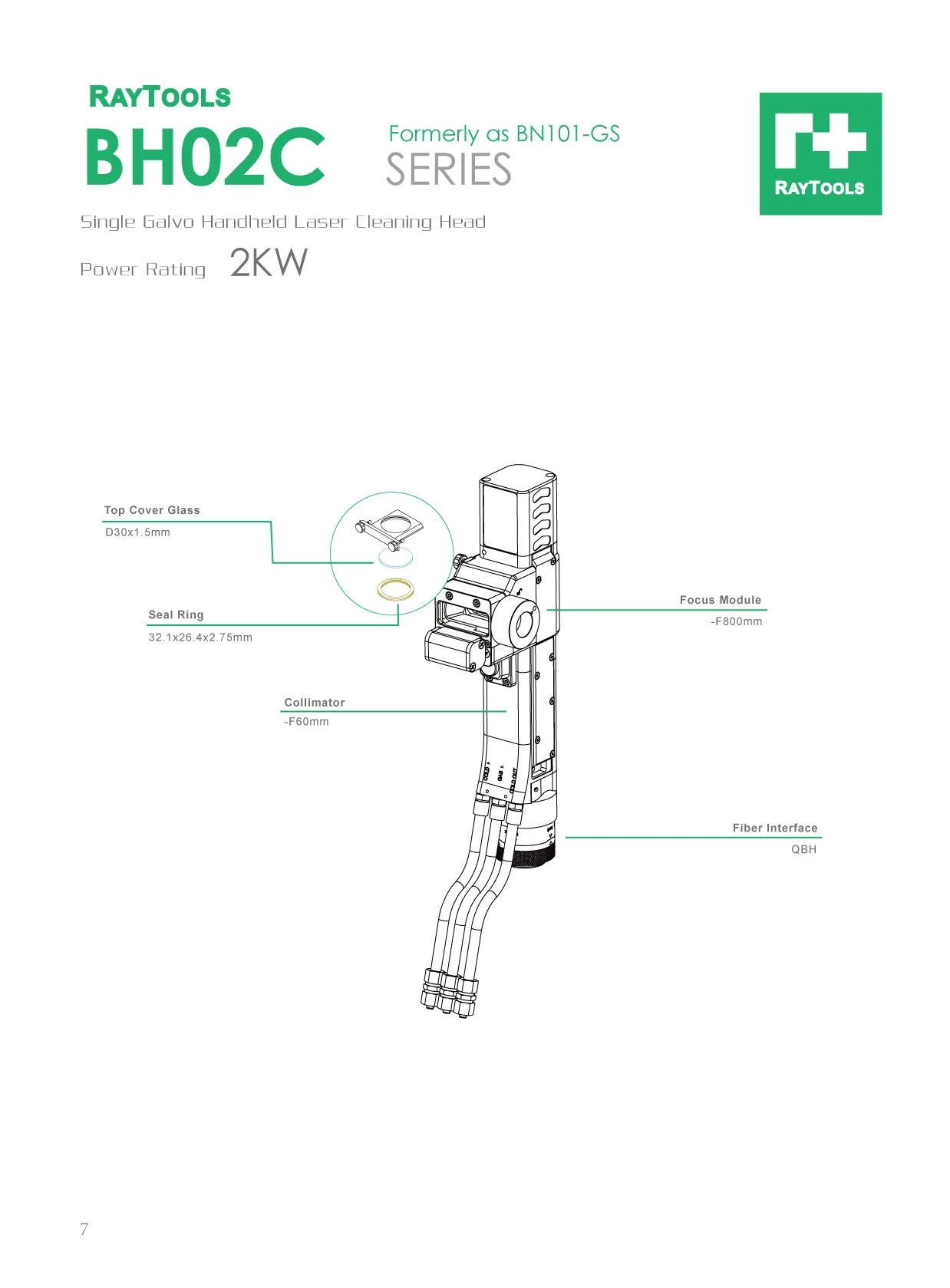

The BH02C Single Galvo handheld laser cleaning head (formerly referenced as BN101-GS) is a highly efficient, ergonomic industrial optical system engineered explicitly for high-speed manual surface decontamination and rust removal. Designed to handle demanding industrial restoration workloads, this versatile tool accommodates fiber laser sources up to 2 kW, ensuring the absolute structural integrity of the beam profile during continuous operation cycles. Featuring a precise single-axis (Single Galvo) optical oscillation mechanism and an ultra-lightweight body layout, the BH02C delivers wide, uniform cleaning paths, making it ideal for the rapid removal of oxides, oil stains, paints, and manufacturing residues without damaging the underlying metal substrate.
Key Specifications:
| Product | Single Galvo Handheld Fiber Laser Cleaning Head |
| Model / Series | BH02C Series (Formerly BN101-GS) |
| Power Rating | ≤ 2 kW |
| Oscillation Type | Single-axis High-Speed Galvo (X-Axis Beam Swing) |
| Cleaning Width Range | Up to 150 mm adjustable linear scanning width (Depending on focal lens configuration) |
| Focal Length Settings | F400mm or F800mm options for deep-field cleaning flexibility |
| Cooling Method | Dual-circuit integrated water cooling (For optics and head body) |
| Fiber Interface Compatibility | Standard QBH connector |
| Head Weight | Approximately 0.9 kg (Ultra-lightweight design to reduce operator hand fatigue) |
Key Features & Industrial Benefits:
- High-Speed Single Galvo Technology: Utilizes an internal precision high-speed galvo scanning mirror to rapidly sweep the focused laser spot into a wide, continuous line, delivering maximum area coverage and highly uniform ablation across flat surfaces.
- Substrate-Safe Non-Contact Ablation: Safely vaporizes rust, paint coatings, soot, and oil film residues without causing secondary mechanical stress, grid erosion, or chemical contamination to the underlying structural steel or aluminum.
- Ultra-Lightweight Ergonomic Architecture: Specifically engineered to minimize physical tool mass down to less than 1 kg, drastically declining operator arm strain and enabling fatigue-free manual operation during long cleaning shifts.
- Double-Layer Contact Safety Protection: Implements a robust electrical loop interlock loop that restricts the fiber laser from discharging unless the unit is correctly positioned, actively safeguarding the operator and shop floor against accidental stray reflections.
- Tool-Less Protective Window Replacement: Features a convenient drawer-type protective window holder arrangement, offering an airtight lock around the internal scanning optics to eliminate dust contamination and ensure tool-less on-site maintenance.
